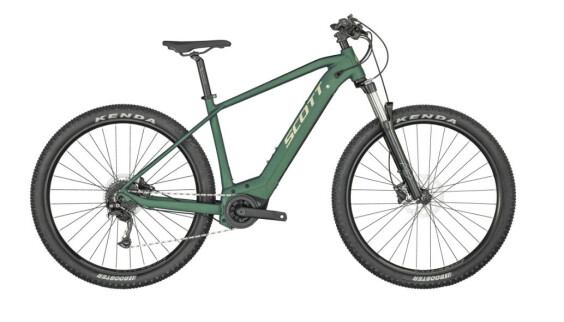

The SCOTT Aspect eRIDE 950 features proven electric assist technology in a comfortable off-road package. With
an integrated battery, and a Bosch drive system, the Aspect eRIDE will give you hours of trail riding energy.
FrameAlloy frameTapered Headtube E2Custom butted tubing / internal cable routingBosch Gen3 / Integr. removable Battery / Boost 148x12mmDO Kickstand mount / Range Booster Ready
Travel120mm
ForkSR Suntour XCM34 Coil15x110mm QR axle / Tapered SteererRemote Lockout / 120mm travel
Remote SystemSR Suntour Remote
Drive UnitBosch Active Line PlusEU: 25kmh / INT: 20mph
BatteryPowerTube 500Wh
DisplayBosch Purion
Charger2A Charger
Rear DerailleurShimano RD-M3100 / 9 Speed
ShiftersShimano SL-M2000
CranksetFSA CK-200 / 165mm
ChainringFSA WB437 32T w/CG
ChainKMC e9S
CassetteShimano CS-HG200-9 ACERA 11-36
BrakesShimano BR-MT200 Disc
RotorFront: SM-RT30 CL 180mm / Rear: RT-EM300 CL 180mm
HandlebarSyncros 3.0 720mm / 31.8mm / 9° / 12mm riseSyncros Comfort lock-on grips
H'stemSyncros 3.0 / 7° / Black
SeatpostSyncros 3.0 / 31.6mm
SeatSyncros ER2.5
HeadsetSyncros OE / Tapered 1.5"-1 1/8"semi integ. OD 50/62mm / ID 44/56mm
Hub (Front)Shimano HB-MT400-B CL / 15x110mm
Hub (Rear)Shimano FH-MT400-B CL / Boost 12x148mm
SpokesStainless Black
RimsSyncros X18 / 32H / 30mm / Pin Joint
Front TireKenda Booster 29x2.6" / 30TPI
Rear TireKenda Booster 29x2.6" / 30TPI
LightsBosch Light Cable pre-installed F&R
Approx weights in KG24.3
Approx weights in LBS53.57
Max. System Weight128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
